QLED Quantum Dots have become a new type of display technology material due to the pure light color and adjustable wavelength. Spin-coating preparation not only can evaluate the properties of quantum dot materials, but also is the basic process for large-area preparation of lighting devices. Relying on decades of deep cultivation in the field of nanomaterials and solid quantum dot material synthesis technology, Mesolight provides customers with high-quality products and overall solutions for process applications.

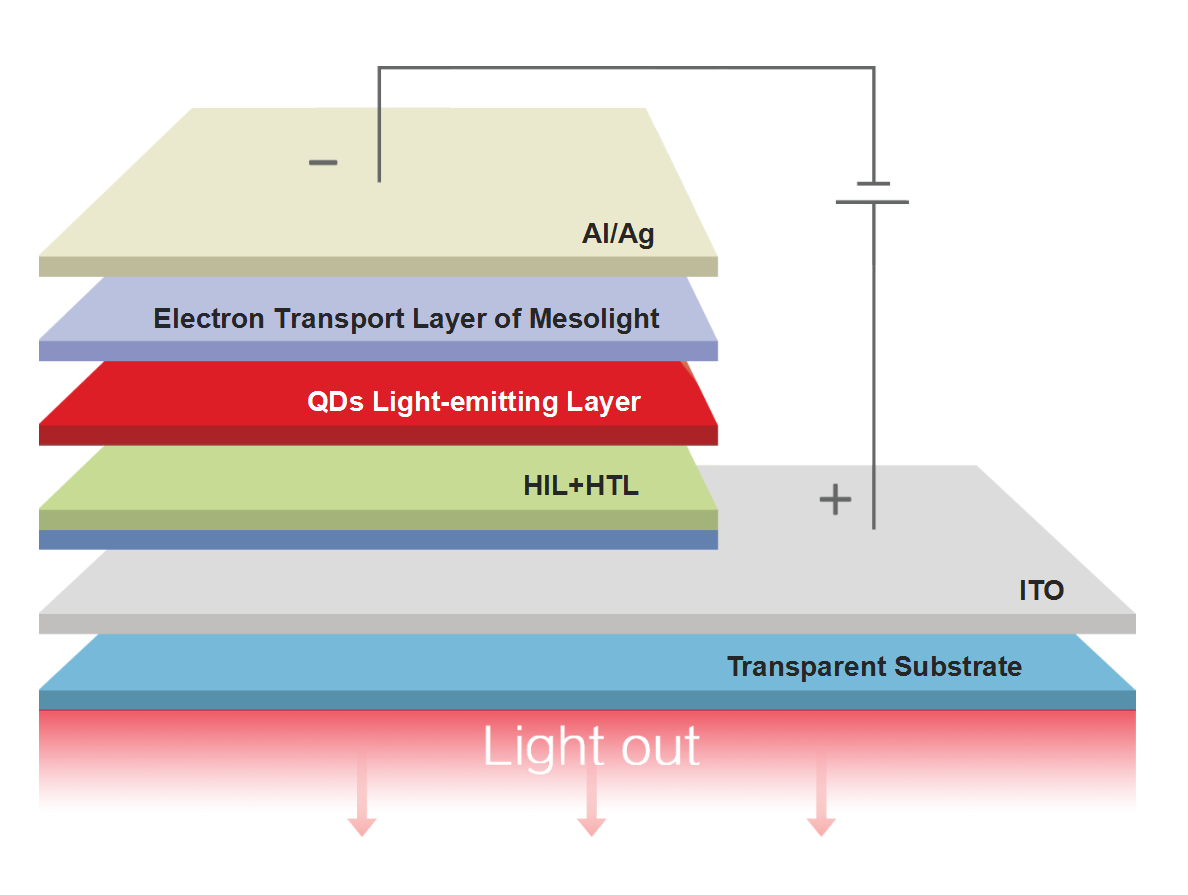

As the supporting product of QLED, ZnMgO NPs are prepared by patented technology. With a transmittance of over 98%, the ZnMgO NPs have weak absorption of visible light which can increase the electron injection barrier and balance carrier injection.
|
|
| Zn(Mg)O Solution | ||||
| Solvent | Particle Size | Concentration | NPs Amount | Cat NO. |
| Ethanol | ≈5nm | 25mg/ml | 50mg | Zn(Mg)O-50 |
| Ethanol | ≈5nm | 25mg/ml | 100mg | Zn(Mg)O-100 |
| Cd-based QLED | ||||||
| Color | EL | FWHM | CE | EQE | Amount | Cat NO. |
| Blue | 465±5nm | ＜25nm | ＞5cd/A | ＞8% | 25mg | Cd-based B QLED-465-25 |
| Blue | 465±5nm | ＜25nm | ＞5cd/A | ＞8% | 50mg | Cd-based B QLED-465-50 |
| Blue | 465±5nm | ＜25nm | ＞5cd/A | ＞8% | 100mg | Cd-based B QLED-465-100 |
| Green | 525±5nm | ＜25nm | ＞60cd/A | ＞15% | 25mg | Cd-based G QLED-525-25 |
| Green | 525±5nm | ＜25nm | ＞60cd/A | ＞15% | 50mg | Cd-based G QLED-525-50 |
| Green | 525±5nm | ＜25nm | ＞60cd/A | ＞15% | 100mg | Cd-based G QLED-525-100 |
| Red | 625±5nm | ＜28nm | ＞20cd/A | ＞15% | 25mg | Cd-based R QLED-625-25 |
| Red | 625±5nm | ＜28nm | ＞20cd/A | ＞15% | 50mg | Cd-based R QLED-625-50 |
| Red | 625±5nm | ＜28nm | ＞20cd/A | ＞15% | 100mg | Cd-based R QLED-625-100 |
| InP-based QLED | ||||||
| Color | EL | FWHM | CE | EQE | Amount | Cat NO. |
| Green | 525±10nm | ＜45nm | ＞40cd/A | ＞10% | 25mg | InP-based G QLED-525-25 |
| Green | 525±10nm | ＜45nm | ＞40cd/A | ＞10% | 50mg | InP-based G QLED-525-50 |
| Green | 525±10nm | ＜45nm | ＞40cd/A | ＞10% | 100mg | InP-based G QLED-525-100 |
| Red | 625±10nm | ＜45nm | ＞12cd/A | ＞10% | 25mg | InP-based R QLED-625-25 |
| Red | 625±10nm | ＜45nm | ＞12cd/A | ＞10% | 50mg | InP-based R QLED-625-50 |
| Red | 625±10nm | ＜45nm | ＞12cd/A | ＞10% | 100mg | InP-based R QLED-625-100 |
| ZnSe-based QLED | ||||||
| Color | EL | FWHM | CE | EQE | Amount | Cat NO. |
| Blue | 455±10nm | ＜40nm | ＞8cd/A | ＞8% | 25mg | ZnSe-based B QLED-455-25 |
| Blue | 455±10nm | ＜40nm | ＞8cd/A | ＞8% | 50mg | ZnSe-based B QLED-455-50 |
| Blue | 455±10nm | ＜40nm | ＞8cd/A | ＞8% | 100mg | ZnSe-based B QLED-455-100 |
If you don’t see the product that you’re looking for, please don’t hesitate to CONTACT US. We will provide you our best solutions for your desired results.
